# Edge detection in images using Fourier Transform

Often while working with image processing, you end up exploring different methods to evaluate the best approach that fits your particular needs. I am going to talk about one such approach here, Fourier Transform.

# What is Fourier Transform?

This is where Fourier does its magic. By passing f(x) through a fourier transformer, we get a new function F(x). What’s sweet about F(x) is that it’s a plot of frequencies that made f(x) originally. So, just by looking at F(x) you can tell what original frequencies were, that were used to form f(x). In doing so Fourier transform can reveal important characteristics of a signal, namely, its frequency components.

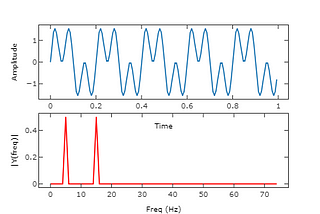

For example, consider the below figure which has an original plot of f(x) and its corresponding Fourier transform F(x).

`Fs = 150.0; # sampling rate Ts = 1.0/Fs; # sampling interval t = np.arange(0,1,Ts) # time vector ff1 = 5; # frequency of the signal 1 ff2 = 10; # frequency of the signal 2 y = np.sin(2*np.pi*ff1*t) + np.sin(3*np.pi*ff2*t)`

Plot

As can be seen from the figure, since the original function was made up of two input functions of differing frequencies, the corresponding frequency plot after Fourier transform shows two spikes at two different frequencies.

This is an oversimplified explanation of Fourier Transform. It’s pretty complicated but really helpful function which finds its widespread use in mathematics, physics and computer vision.

For someone not familiar with what Fourier transform and its usage, I strongly recommend watching the below listed videos first before continuing.

# Fourier Transform in Image Processing

But what use does it have in image processing? It converts an input image from spatial domain to frequency domain. In other words, if you were to plot an image after taking its fourier transform, all you would see is a plot of high and low frequencies.

Low frequencies situated towards the center of the image and high frequencies scattered around. A picture speaks a thousand words, so here it is :

Here is the python code to compute and plot the fourier transform of an input image as above.

`import numpy as np import cv2 from matplotlib import pyplot as plt img = cv2.imread('scenery.jpg', 0) dft = cv2.dft(np.float32(img), flags=cv2.DFT_COMPLEX_OUTPUT)dft_shift = np.fft.fftshift(dft) magnitude_spectrum = 20 *    np.log(cv2.magnitude(dft_shift[:, :, 0], dft_shift[:, :, 1])) plt.subplot(2, 2, 1), plt.imshow(img, cmap='gray') plt.title('Input Image'), plt.xticks([]), plt.yticks([])plt.subplot(2, 2, 2), plt.imshow(magnitude_spectrum, cmap='gray')plt.title('After FFT'), plt.xticks([]), plt.yticks([])`

Ok, so now you have a FFT transform of the image. From here on, there are various things you can do using that FFT transformed image:

• Edge detection — Using a High Pass filter or Band Pass filter
• Noise Reduction — Using a Low Pass filter
• Blurring of image — Using a Low Pass filter
• Feature Extractions(In some cases) — A mix and match of filters and some other openCV tools

In the interest of keeping this post short, I’ll cover “Edge Detection” using a HPF filter in this part and will try to cover the rest of the items in part 2.

# A Bit about filters first

As mentioned earlier, in an FFT transformed image, low frequencies are found in the center and high frequencies are scattered around, we can create a mask array which has a circle of ones in the center and rest all zeros. Now when this mask is applied to the original image, the resultant image would only have low frequencies. This becomes quite useful as low frequencies correspond to edges in spatial domain.

Here’s what a HPF looks like in python

`mask = np.ones((rows, cols, 2), np.uint8) r = 80 center = [crow, ccol] x, y = np.ogrid[:rows, :cols] mask_area = (x - center[0]) ** 2 + (y - center[1]) ** 2 <= r*r`

Although you can choose to use filters of many types, there are mainly three types of filter used:

• High Pass Filter (HPF)
• Low Pass Filter (LPF)
• Band Pass Filter (BPF)

# Edge Detection with High Pass Filter using openCV and NumPy

Edges in an image are usually made of High frequencies. So what we need to after taking a FFT (Fast Fourier Transform) of an image is, we apply a High Frequency Pass Filter to this FFT transformed image. This filter would in turn block all low frequencies and only allow high frequencies to go through. Finally, now if you take a inverse FFT on this filter applied image, you should see some distinct edge features in the original image.

I am gonna use my car’s image for this experiment :)

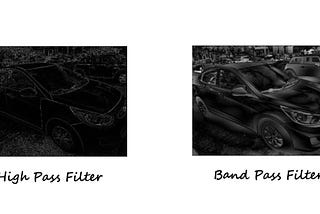

Below figure shows all four stages of the process and given after is the python code for the same.

As can be seen, application of high pass filter, blocked all the low frequencies in the center and allowed only the high frequencies to pass through. Now since edges are usually made of low frequencies, that’s we see in the resultant image.

Here is the Python code

`rows, cols = img.shape crow, ccol = int(rows / 2), int(cols / 2) # center # Circular HPF mask, center circle is 0, remaining all ones mask = np.ones((rows, cols, 2), np.uint8) r = 80 center = [crow, ccol] x, y = np.ogrid[:rows, :cols] mask_area = (x - center[0]) ** 2 + (y - center[1]) ** 2 <= r*r # apply mask and inverse DFT fshift = dft_shift * mask fshift_mask_mag = 2000 * np.log(cv2.magnitude(fshift[:, :, 0], fshift[:, :, 1])) f_ishift = np.fft.ifftshift(fshift) img_back = cv2.idft(f_ishift) img_back = cv2.magnitude(img_back[:, :, 0], img_back[:, :, 1])plt.subplot(2, 2, 1), plt.imshow(img, cmap='gray') plt.title('Input Image'), plt.xticks([]), plt.yticks([])plt.subplot(2, 2, 2), plt.imshow(magnitude_spectrum, cmap='gray') plt.title('After FFT'), plt.xticks([]), plt.yticks([])plt.subplot(2, 2, 3), plt.imshow(fshift_mask_mag, cmap='gray') plt.title('FFT + Mask'), plt.xticks([]), plt.yticks([])plt.subplot(2, 2, 4), plt.imshow(img_back, cmap='gray') plt.title('After FFT Inverse'), plt.xticks([]), plt.yticks([])plt.show()`

Part two of this blog will cover the implementation and application of Low pass and Band pass filter.

# Credits

• Also a great thanks to Eugene Khutoryansky for his excellent video on Fourier Transform.

As always, happy coding !!

Originally published at akshaysin.github.io on August 24, 2018.
